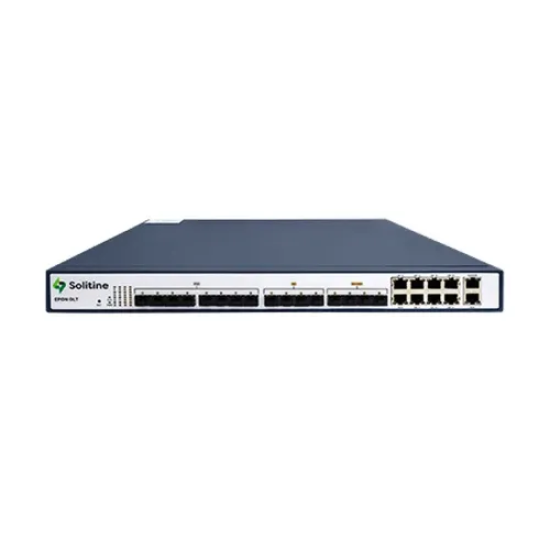

Solitine SOL1008-DP 8 Port 10G EPON OLT

Solitine SOL1008-DP 8 Port 10G EPON OLT
-9 %
Share:
Solitine SOL1008-DP 8 Port 10G EPON OLT
  • Price:  75,000৳
  • Regular Price:  82,000৳
  • Product id:  141
  • Stock: In Stock
  • Brand: Solitine
  • Model: SOL1008-DP
  • SKU: 141
Based on 0 reviews. - Write a review
Payment Option
WhatsApp Inquiry
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare

Key Features

  • PON Port Quantity: 8
  • Interface Type: SC/UPC
  • PON Port Type: PX20++ SC/UPC
  • PON Port Max. Splitting Ratio: 1:64
View more info

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Trende Bangladesh is not responsible for any results obtained from using this information.

Specification
General Information
Device Type Standalone, 1U height, 19-inch rack-mountable
Max ONUs/ONT Supported Up to 512 ONUs (64 per PON port)
Operating Temperature/Humidity Range Operating Temperature: 0~+50°C; Storage Temperature: -40~+85°C; Relative Humidity: 5~90% (non-condensing)
PON Standards Supported EPON (IEEE802.3ah)
Power Consumption 55W
Power Supply AC input: 100–240V, 47/63Hz; Supports 2x redundant power supply
Ports & Interfaces
10G/25G/100G Ethernet 10G Ethernet supported via SFP+ slots
CLI/Web GUI/SNMP Supported; Management modes include SNMP, Telnet, CLI, Web, SSH v2
Connector Type SC/UPC
Management Ports 1 x 10/100BASE-T out-band AUX port, 1 x Console port
Optical Budget TX Power: +4.5dBm~+9dBm; Rx Sensitivity: -32dBm; Saturation Optical Power: -8dBm
Out-of-Band Management RJ-45, Console
PON Ports 8 x EPON ports with PX20++ SC/UPC connectors
Port Density 8 PON ports
Uplink Ports 8 x GE (RJ45), 4 x 1GE SFP, 4 x 10GE SFP+
Wavelengths TX: 1490nm, RX: 1310nm
Features
Layer 2/Layer 3 Switching Supported; Layer 2 features include VLAN, STP/RSTP/MSTP; Layer 3 features include static routing, RIPv1/v2, OSPFv2/v3
Security Supported; MAC address filtering, ACL, RADIUS, TACACS+, HTTPS, SSH v2.0
VLAN Support Supported; Port VLAN, Protocol VLAN, VLAN tag/untag, VLAN transparent transmission, QinQ, 4096 VLANs
Applications
Enterprise Broadband Supported
FTTH Deployments Supported
Triple-Play Services Supported
Extender Features
Dynamic Bandwidth Allocation Supported
Performance
Latency Supported; QoS based on port, VID, TOS, and MAC address
Max Subscribers Supported Up to 512 ONUs
Multicast Support Supported; IGMP snooping, 256 IP multicast groups
Throughput per PON Port 1.25Gbps symmetrical
Physical Design & Dimensions
Form Factor 1U
Rack Mountable Yes, 19-inch standard
Weight & Dimensions Weight: 4.5kg; Dimensions: 442mm x 320mm x 43mm
Packaging & Accessories
Documentation (Manual, Warranty Card) Technical data sheet available
Optional Modules EPON SFP PX20+++ Module, 1.25G SFP Module, 10G SFP+ Module
Warranty & Support
Warranty Period 2 years
Description

Solitine SOL1008-DP 8 Port 10G EPON OLT

The Solitine SOL1008-DP 8 Port 10G EPON OLT features eight ports and provides high-speed internet access for up to 256 Optical Network Units (ONUs) with a splitting ratio of 1:64 per PON port. This OLT includes four PON ports equipped with SC/UPC connectors and SFP slots, supporting both the EPON standard and 10G speeds. The AC power supply of the Solitine SOL1008-DP OLT accepts input voltages ranging from 100 to 240V. It is designed to support a variety of features, including IEEE802.12x, VLAN, RADIUS, TACACS+, HTTPS, and SSH V2.0. For easy configuration and monitoring, the device also supports SNMP, Telnet, HTTPS, and SSH login access management.



Overall, the Solitine SOL1008-DP 8 Port 10G EPON OLT is a versatile and reliable option for broadband access networks and is compatible with any brand of EPON ONU.
