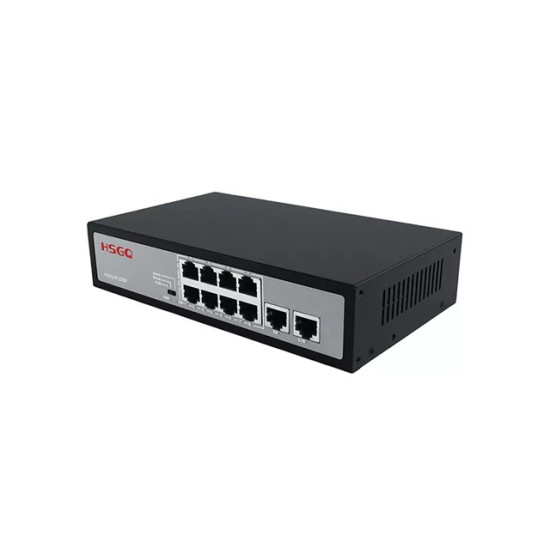

HSGQ SF1008P 10-Port Gigabit Uplink 8-Port PoE Switch
A small CCTV system should not need complicated wiring or separate power adapters for every camera. The HSGQ SF1008P 10-Port PoE Switch makes installation more convenient by connecting and powering compatible IP cameras through Ethernet cables. Whether you are setting up security cameras in a shop, office, restaurant or small commercial building, this unmanaged PoE switch offers an organized networking solution.
The HSGQ SF1008P combines 8 Fast Ethernet PoE ports with 2 Gigabit uplink ports, making it suitable for everyday surveillance and PoE networking. It also comes with a 120W power supply, automatic PoE device detection and flexible operating modes for different installation requirements.
A Practical Choice for Small CCTV Camera Networks
With 8 × 10/100Mbps RJ45 PoE ports, the HSGQ SF1008P can connect up to eight compatible IP cameras or other PoE-powered devices, provided their combined power requirements remain within the available PoE capacity.
The switch supports IEEE 802.3af and IEEE 802.3at standards, allowing it to supply network data and electrical power through the same cable. IEEE 802.3at supports up to 30W per compatible port, while IEEE 802.3af supports up to 15.4W.
For a small business owner or CCTV installer, this means fewer individual power connections, cleaner cabling and easier device installation.
The 120W power supply should not be confused with 120W available to every port. Always calculate the total power consumption of connected cameras and confirm the switch's usable PoE budget before installation.
Why Two Gigabit Uplinks Matter
The HSGQ SF1008P features 2 × 10/100/1000Mbps Gigabit RJ45 uplink ports for connecting to an NVR, router or another networking device.
For example, one uplink can connect the switch to an NVR for camera recording, while another can connect it to the main local network, depending on the installation layout.
Because the camera-side PoE ports support 10/100Mbps, this is not a full Gigabit PoE switch. However, the dedicated Gigabit uplinks provide higher-speed connections for carrying combined network traffic.
With 5.6Gbps switching capacity, 4.166Mpps forwarding performance, a 2K MAC address table and store-and-forward transmission, the switch is designed to handle communication between its connected network devices.
Normal, VLAN or Extend — Choose What Your Setup Needs

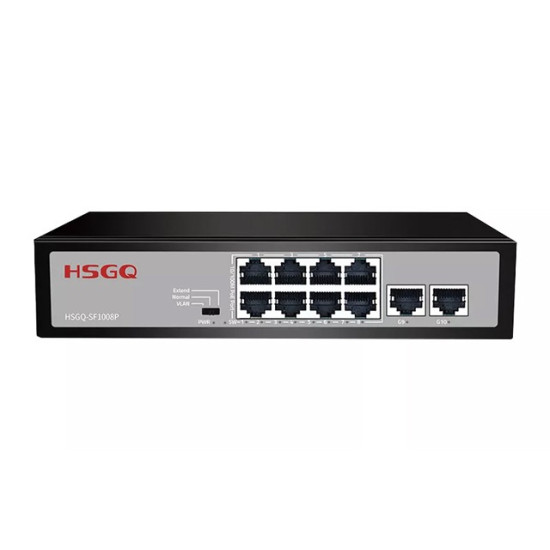

Different camera locations may need different port behavior. The SF1008P provides three working modes through its DIP switch.
Normal Mode allows all ports to communicate with one another, supporting standard Ethernet cable distances of up to 100 meters.
VLAN Mode isolates PoE ports 1–8 from each other while allowing communication with the uplink ports. This is useful for CCTV installations where direct communication between connected cameras is unnecessary.
Extend Mode supports PoE power and data transmission up to 250 meters on ports 1–8 under suitable cabling conditions. In this mode, the port speed is reduced to 10Mbps.
For cameras installed far from a shop counter, office room or security monitoring area, Extend Mode may offer additional flexibility. Check the camera's video bitrate before using this mode, as 10Mbps may not suit every surveillance application.
Compact Hardware with Easy Plug-and-Play Installation
The HSGQ SF1008P is built for straightforward network deployment. As an unmanaged PoE Ethernet switch, it does not require complex software configuration for basic connections.
It supports automatic PoE detection, Auto MDI/MDIX, IEEE 802.3x flow control and front-panel LED indicators for monitoring power and network activity.
The compact 200 × 118 × 44mm design is convenient for smaller networking spaces. Its AC 100–240V, 50/60Hz input supports standard electrical installations, while the specified operating temperature ranges from -10°C to 50°C.
The manufacturer lists a switch, power cord, user manual and certification document in the package.
Is the HSGQ SF1008P Right for Your Setup?
The HSGQ 8 Port PoE Switch with 2 Gigabit Uplinks is a sensible option for users who want to build a compact IP camera network without investing in a larger 16-port or 24-port switch.
It is suitable for small retail shops, office reception areas, restaurants, apartment security rooms, clinics and small CCTV monitoring systems. Compatible wireless access points and VoIP phones can also be connected where their network speed and PoE requirements match the switch.
If your installation needs more than eight PoE devices, or Gigabit speed on every connected PoE port, choose a higher-capacity model instead.
