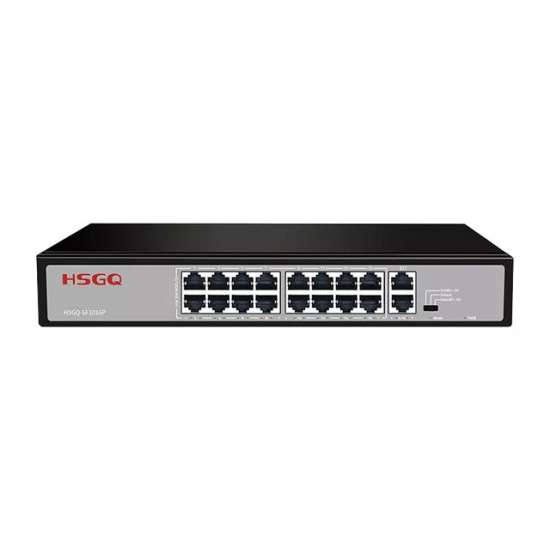

HSGQ 18-port Gigabit up-link PoE switch

HSGQ SF1016P 18-Port PoE Switch with Gigabit Uplink

Planning a CCTV setup with multiple IP cameras? The HSGQ SF1016P 18-Port PoE Switch makes network installation easier by combining data connectivity and power delivery in one device. Built for CCTV surveillance, office security and business networking, this switch features 16 Fast Ethernet PoE ports, 2 dedicated Gigabit uplink ports and a 200W total PoE power budget.

For anyone looking for an 18 port PoE switch in Bangladesh, the HSGQ SF1016P offers useful features such as IEEE 802.3af/at PoE support, VLAN port isolation and extended-distance transmission. It is particularly suitable for projects that need several PoE-powered cameras without complicated network configuration.

Power Up to 16 Compatible IP Cameras Through Ethernet

The HSGQ SF1016P comes with 16 × 10/100Mbps RJ45 PoE ports, allowing compatible IP cameras, wireless access points and IP phones to receive power and network data through a single Ethernet cable.

Its IEEE 802.3af and IEEE 802.3at support enables automatic detection of compatible PoE devices. The switch can deliver up to 30W through a PoE+ port, subject to the overall 200W power budget.

This helps installers reduce separate power adapters and keep CCTV wiring more organized. Remember that 200W is the total PoE budget, so the combined power requirements of all connected devices must stay within that limit.

Two Gigabit Uplink Ports for NVR and Network Connection

While the 16 PoE ports operate at 10/100Mbps, the switch includes 2 × 10/100/1000Mbps Gigabit RJ45 uplink ports.

These dedicated uplinks can connect the switch to an NVR, router or another network switch, providing higher-capacity network connections for the combined traffic from multiple cameras.

The HSGQ SF1016P also features 7.2Gbps switching bandwidth, a 5.35Mpps packet forwarding rate, a 2K MAC address table and a 1.5Mb packet buffer. Its store-and-forward switching technology supports organized Ethernet traffic handling for everyday surveillance and business networking.

Three Working Modes for Different CCTV Installations

Not every CCTV installation has the same networking requirements. That is why the HSGQ SF1016P includes a three-position DIP switch with Default, VLAN and Extend modes.

Default Mode: All ports can communicate normally, with the PoE ports supporting automatic 10/100Mbps negotiation and standard Ethernet transmission distances of up to 100 meters.

VLAN Mode: The 16 PoE ports are isolated from one another but can communicate with the uplink ports. This can help separate connected surveillance devices at the port level.

Extend Mode: The 16 PoE ports can support data transmission and PoE delivery up to 250 meters under suitable installation conditions. In this mode, their data rate is limited to 10Mbps.

For CCTV projects where cameras are installed farther away, Extend Mode offers additional flexibility. However, higher-bitrate cameras may require more than 10Mbps, so check network bandwidth requirements before enabling this mode.

200W PoE Budget and Practical Installation Design

The HSGQ SF1016P is designed for straightforward installation without complex setup procedures. It uses automatic PoE device detection and supports IEEE 802.3x flow control, Auto MDI/MDIX and store-and-forward packet transmission.

LED indicators on the front panel help users monitor power, connection activity and operating modes.

The switch measures 268 × 181 × 44mm, weighs approximately 1.29kg and is compatible with 1U rack mounting. It supports AC 100–240V, 50/60Hz input for standard commercial power installations.

According to the manufacturer, the package includes the switch, power cord, user manual, warranty card and a pair of mounting brackets.

Where Is the HSGQ SF1016P PoE Switch Most Useful?

This 16 port PoE switch with 2 Gigabit uplinks is a practical option for businesses that need multiple network cameras or PoE devices connected through one central switch.

It can be used in office CCTV systems, shops, warehouses, schools, hotels, apartment buildings and commercial security installations. Its extended transmission mode is also useful where some cameras are installed farther from the networking cabinet.

If your connected devices require Gigabit Ethernet on every PoE port, consider a full Gigabit PoE model instead, because the SF1016P provides 100Mbps connectivity on its 16 PoE ports.

HSGQ SF1016P 18 Port PoE Switch Price in Bangladesh

Looking for the HSGQ 18 Port PoE Switch price in BD? Explore the HSGQ SF1016P at Trende Bangladesh for the latest product information, price and availability.

This model is currently listed as Upcoming, so please confirm its stock and selling price before purchasing.
