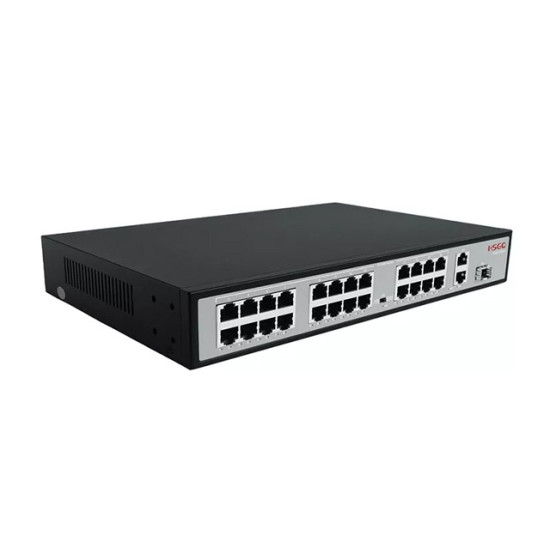

HSGQ SF1024P 27-Port Gigabit Uplink 24-Port PoE Switch

When a CCTV project grows from a few cameras to a complete surveillance network, cable management, power distribution and network connectivity become much more important. The HSGQ SF1024P 27-Port PoE Switch brings these requirements together in one device, making it a practical choice for offices, factories, warehouses and commercial security installations.

Instead of using separate power adapters for every camera, this switch lets you connect and power compatible devices through Ethernet cables. It combines 24 Fast Ethernet PoE ports, 2 Gigabit RJ45 uplinks, 1 Gigabit SFP port and a 300W total PoE power budget. For CCTV installers looking for a 24 port PoE switch in Bangladesh, the HSGQ SF1024P offers a useful balance of port capacity, power and network flexibility.

24 PoE Connections, One Organized CCTV Network

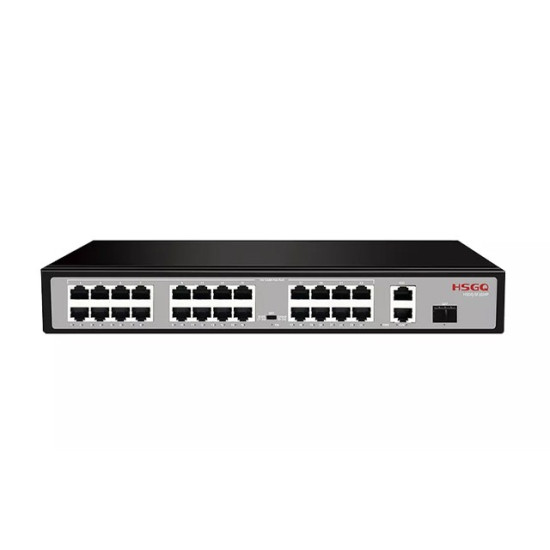

The SF1024P provides 24 × 10/100Mbps RJ45 PoE ports for connecting IP cameras, VoIP phones, wireless access points and other compatible network equipment.

Each PoE port supports IEEE 802.3af and IEEE 802.3at standards, enabling the switch to detect compatible powered devices and deliver electrical power alongside network data. PoE+ supports up to 30W per port, but the combined output must remain within the switch's 300W total PoE budget.

For example, a surveillance setup with 24 cameras consuming 8W each would require approximately 192W, leaving some power capacity for device startup requirements and changes in load. Always calculate the actual maximum power consumption of your cameras before installation.

The 24 PoE ports are Fast Ethernet ports, not Gigabit ports. This makes the switch suitable for many standard IP surveillance applications, while devices requiring a full 1000Mbps connection should use an appropriate Gigabit network switch.

A Smarter Uplink Arrangement for Multiple Camera Feeds

The HSGQ SF1024P separates camera connectivity from the main network uplinks.

Its 2 × 10/100/1000Mbps RJ45 uplink ports can connect to an NVR, router or another network switch. A dedicated Gigabit SFP slot is also available for compatible fiber connectivity, which can be useful when linking surveillance equipment across different network locations.

This arrangement allows multiple cameras to share higher-capacity uplink connections rather than relying entirely on Fast Ethernet uplinks.

Internally, the switch supports 10.8Gbps switching capacity, an 8.035Mpps forwarding rate, a 2K MAC address table, a 1.5Mb packet buffer and store-and-forward transmission. These specifications support traffic handling across its available Ethernet interfaces.

Different CCTV Locations Need Different Network Modes

A major advantage of the HSGQ SF1024P is the ability to choose between three operation modes using its DIP switch.

OFF (Normal) Mode: All ports can communicate normally, with standard Ethernet transmission of up to 100 meters using suitable network cables.

VLAN Mode: PoE ports 1–24 are isolated from one another but can communicate through the uplink ports. This is useful when camera-to-camera communication is unnecessary and port isolation is preferred.

Extend Mode: Ports 9–24 support extended PoE data transmission up to 250 meters under suitable cable and power conditions. In this mode, these ports operate at 10Mbps.

For warehouses, factories or large buildings where certain cameras are installed far from the networking cabinet, Extend Mode may simplify cable planning. However, the reduced 10Mbps speed needs to be considered when using high-bitrate IP cameras.

Designed for Network Cabinets and Continuous Surveillance

The HSGQ SF1024P has a 320 × 207 × 45mm chassis and supports standard 1U rack installation, making it convenient for structured CCTV networking environments.

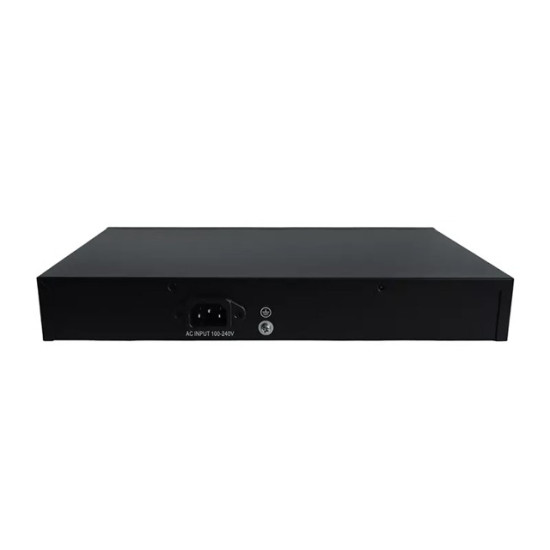

The manufacturer specifies AC 100–240V, 50/60Hz input with a 52V/5.76A power supply. Front-panel LED indicators help identify power status, port connections, data activity and selected operating mode.

It also supports Auto MDI/MDIX, IEEE 802.3x flow control and automatic PoE detection. This means basic device connections can be established without complex manual network configuration.

According to HSGQ, the package includes the switch, power cord, user manual, certification document and mounting brackets.

Choosing the Right Switch for Your Security Project

The HSGQ SF1024P 24 Port 100Mbps PoE Switch with Gigabit Uplink is well suited to businesses that need centralized camera connections, organized Ethernet cabling and PoE-powered surveillance equipment.

It can be a practical solution for garment factories, supermarkets, educational institutions, office buildings, warehouses and multi-floor CCTV installations.

Before purchasing, consider three things: how many PoE cameras you need to connect, the combined power requirement of those cameras and whether any device needs Gigabit speed on its individual Ethernet port.

If you need 24 Gigabit PoE ports rather than 24 Fast Ethernet PoE ports, the HSGQ SG2024P 24-Port Gigabit PoE Switch is a more suitable model to compare.

HSGQ SF1024P 27 Port PoE Switch Price in Bangladesh

Searching for the HSGQ 27 Port PoE Switch price in BD or a reliable 300W PoE switch for your CCTV project? Check the HSGQ SF1024P at Trende Bangladesh for product information, updated pricing and stock availability.

The product is currently listed as Upcoming, so please confirm availability before ordering.

For more options, explore the Network Switch Collection or browse Networking Products.

For smaller camera installations, you can compare the HSGQ SF1016P 18-Port PoE Switch or the HSGQ SF1006P PoE Switch.

For larger projects requiring additional management features, explore the HSGQ 24-Port Managed PoE Switch.
