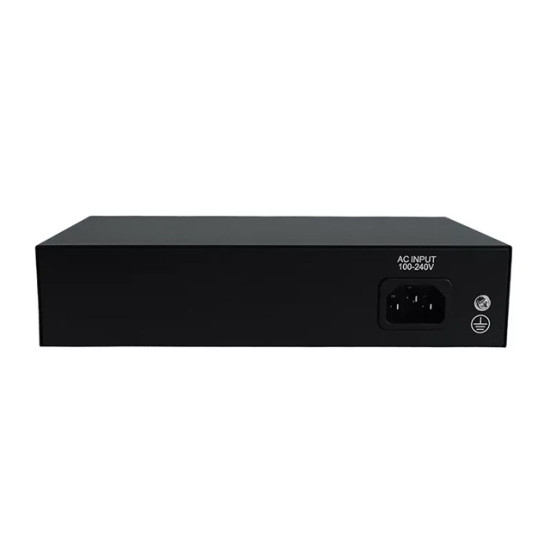

HSGQ SF1006P 6 Port PoE Switch Price in Bangladesh

Four IP cameras, one network recorder, and a router—if you are planning a small CCTV setup, the HSGQ SF1006P 6 Port 10/100Mbps PoE Switch can make the installation much simpler. Instead of using separate power adapters for every compatible camera, you can connect network cables to the switch and deliver both data and power through its PoE-enabled ports.

The HSGQ SF1006P PoE Switch is a compact, unmanaged network switch designed for small surveillance systems, shops, offices, and other installations that need a few powered Ethernet connections.

Four PoE Ports and Two Uplinks — How They Work

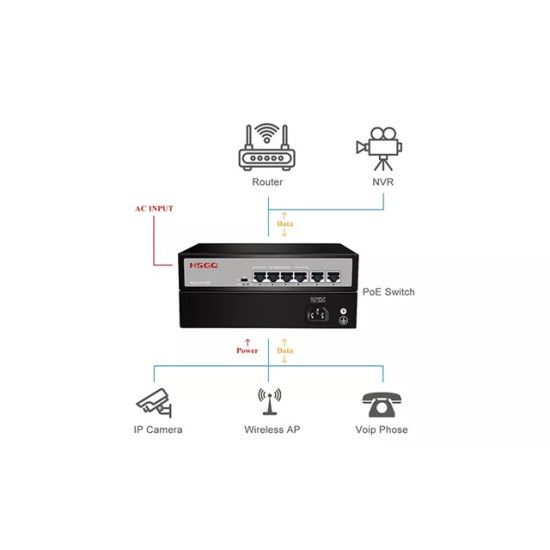

The HSGQ SF1006P has six Fast Ethernet RJ45 ports, divided into two groups:

• 4 × 10/100Mbps PoE ports: Connect compatible IP cameras, wireless access points, or other IEEE 802.3af/at powered devices.

• 2 × 10/100Mbps uplink ports: Connect your NVR, router, or existing network equipment without using the four powered ports.

This arrangement is especially useful for anyone looking for an HSGQ 4 Port PoE Switch with 2 Uplink connections.

Each PoE+ port supports compatible devices requiring up to 30W, but the total connected power demand must stay within the switch's available PoE capacity.

Three Useful Modes for CCTV Installation

One feature that makes this HSGQ 6 Port PoE Switch useful for installers is its physical DIP switch, which provides Normal, VLAN, and Extend modes.

Normal Mode allows the ports to communicate as a standard Fast Ethernet network, with cable runs typically up to 100 metres using suitable cabling.

VLAN Mode isolates the four PoE ports from one another while keeping uplink communication available. This can help organise a small camera network without complicated configuration.

Extend Mode supports PoE data transmission over distances of up to 250 metres under suitable conditions. In this mode, the connection speed is reduced to 10Mbps, so camera bandwidth and cable quality must be considered.

For buyers searching for a 250m Extend Mode PoE Switch, this function can be useful when a compatible camera is installed farther from the main networking area.

What Performance Can You Expect?

The HSGQ SF1006P offers 1.2Gbps switching capacity, 0.8928Mpps packet forwarding, a 1K MAC address table, and a 448K packet buffer.

It supports 10/100Mbps Ethernet with store-and-forward switching, automatic port negotiation, and Auto MDI/MDIX.

This is a 6 Port 10/100Mbps PoE Switch, not a Gigabit model. It is designed for suitable small CCTV and basic networking applications rather than high-bandwidth Gigabit connections.

Its compact 200 × 118 × 44mm body makes it convenient to place near a CCTV recorder or inside a suitable networking cabinet.

A Practical Choice for Small CCTV Networks

For a small retail shop, reception area, office, or home surveillance installation, a 4 Port PoE+ Switch for CCTV can reduce cable clutter and simplify camera connections.

The HSGQ SF1006P can also serve as an Unmanaged PoE Switch for Small Office networking when compatible PoE-powered devices are used.

Unlike a fully managed switch, this model does not require web-based configuration for normal operation. Its simple DIP switch controls the available operating modes.

Before connecting your devices, check their PoE compatibility, combined power consumption, cable length, and required network speed.

You can explore other networking equipment in Trende's Network Switch Collection.

HSGQ SF1006P Price and Availability in Bangladesh

The HSGQ SF1006P price in Bangladesh has not yet been announced at Trende Bangladesh. This model is currently listed as Upcoming, with pre-booking available.

If you are comparing 6 Port PoE Switch Price in BD options or searching for an HSGQ PoE Switch Price in BD, the SF1006P is worth considering for its four PoE+ ports, two separate uplinks, compact design, and Extend Mode functionality.

For customers looking for a PoE Switch for IP Camera in Bangladesh, the SF1006P is best suited to compatible small-scale installations where Fast Ethernet is sufficient.

Check the latest availability, confirmed PoE power budget, and warranty details at Trende Bangladesh before ordering.
