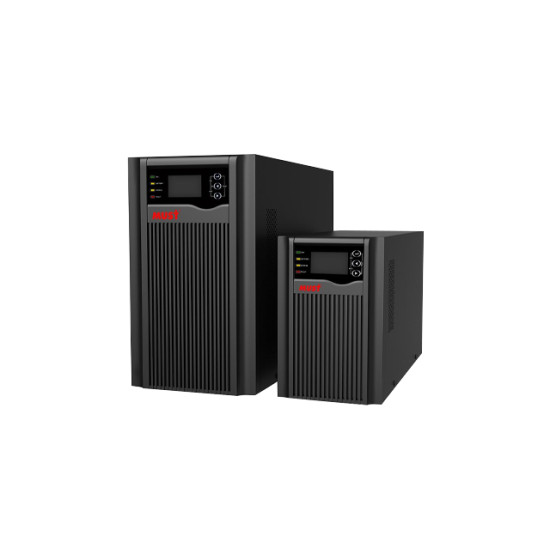

MUST EH55-H1KSL (EH55-H1KS) 1KVA/1KW Long-Run Online UPS
Small Power Capacity, Professional Power Protection
Not every critical networking installation requires a large 3KVA or 6KVA UPS. Sometimes, the priority is to protect a smaller electrical load while maintaining stable output power and the flexibility to select the required backup capacity.
The MUST EH55-H1KSL (EH55-H1KS) 1KVA Online UPS is designed for this type of application. As part of the MUST EH5500 Series, it combines 1000W rated output, true online double-conversion technology and an external battery arrangement for compatible professional equipment.
Its 1KVA/1KW power rating makes it relevant for appropriately sized office networking systems, selected server equipment and electronic devices requiring continuous inverter-based power.
The 36V External Battery System Explained
Unlike the standard H1K models with built-in batteries, the H1KS version is designed to operate with an external battery bank.
The manufacturer specifies a nominal 36V DC battery system, typically configured using three compatible 12V lead-acid batteries connected in series.
This external battery arrangement allows the battery capacity to be selected according to the installation's backup requirements, provided the complete system follows the manufacturer's specifications.
The UPS supports adjustable charging current from 1A to 12A, with a default setting of 5A for the external-battery version.
A larger compatible battery bank may provide a longer runtime, but backup duration depends on connected load, usable battery capacity, charging configuration and system efficiency.
The external batteries are a separate part of the installation and should not be assumed to be included with the UPS.
Why 0ms Transfer Matters for Connected Equipment
The EH55-H1KS uses True Online Double Conversion technology.
During normal online operation, utility AC power is converted to DC and then back to regulated AC through the inverter.
If the incoming electricity fails, the battery bank continues supporting the inverter without the transfer delay associated with conventional standby UPS systems.
MUST specifies 0ms transfer time to battery operation, making this system suitable for consideration where even a brief power interruption could affect connected equipment.
Transfer to bypass mode is specified separately at 4ms.
The UPS provides pure sine wave output, which can be important for compatible electronics requiring stable and controlled AC power.
Full 1000W Output with Wide Input Voltage Support
The MUST EH55-H1KSL offers 1000VA apparent power capacity and 1000W rated active output, with an output power factor of 1.0.
It supports 208V, 220V, 230V and 240V AC output configurations, with manufacturer-specified output voltage regulation accuracy of ±1%.
The supported input voltage range is 110–300V AC, allowing the UPS to operate under a broad range of utility voltage conditions.
This makes the unit relevant for professional environments where maintaining suitable power quality is important.
However, the combined load must remain within the UPS's rated output capacity. The 1000W rating describes maximum supported power, not guaranteed battery runtime.
LCD Monitoring and Communication Features
The EH55-H1KS includes LCD and LED status monitoring to display important operating information.
The display can provide information about the current operating mode, input and output conditions, and connected load.
Standard RS-232 and USB interfaces support compatible monitoring applications.
Optional communication interfaces include SNMP, AS400 Relay and RS485, while Emergency Power Off is available as an optional feature.
The UPS also supports cold-start operation from its battery system, provided sufficient battery power is available.
Its DSP digital control technology manages power conversion and operating functions for reliable UPS performance.
Installation Requirements for Long-Run Backup
The EH55-H1KSL is designed for indoor installation with an operating temperature range of 0–40°C.
Because the external battery bank operates at 36V nominal DC, battery wiring, polarity, protection, ventilation and charging settings must be handled carefully.
The complete battery arrangement should be installed by a qualified technician according to the manufacturer's requirements.
This is particularly important when choosing larger-capacity external batteries for extended backup operation.
MUST EH55-H1KSL Online UPS Price in Bangladesh
The MUST EH55-H1KSL (EH55-H1KS) 1KVA/1KW Online UPS Price in Bangladesh should be confirmed with Trende Bangladesh according to current availability and the selected battery configuration.
The total installation cost may vary depending on the external battery bank, required cables, protection accessories and any optional monitoring equipment.
For buyers comparing a 1KVA Long Backup Online UPS Price in BD, the EH55-H1KSL offers 1000W output capacity, 0ms battery transfer, pure sine wave power and flexible external battery support.
The model is particularly relevant to appropriately sized networking systems and professional electronic installations where stable AC output and separately planned battery backup are essential.
Before ordering, confirm the exact hardware model, battery arrangement and complete installation requirements with Trende Bangladesh.
