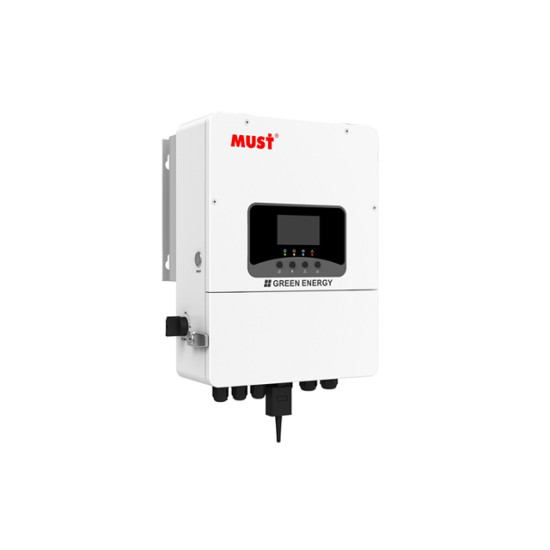

Must PH11-6KL1-EU-G2 Hybrid Solar Inverter

Must PH11-6KL1-EU-G2 Hybrid Solar Inverter
Upcoming
Share:
Must PH11-6KL1-EU-G2 Hybrid Solar Inverter
  • Product id:  506
  • Brand: MUST
  • Model: PH11-6KL1-EU-G2
  • Dimensions: 36.00cm x 50.00cm x 23.80cm
  • SKU: MSTPH6KL1
WhatsApp Inquiry

Upcoming

Key Features

  • 6000W Pure Sine Wave — High efficiency (97.5%) hybrid inverter
  • Dual MPPT + 9000W PV — Excellent solar input capability (Max 550V)
  • 135A Battery Charge — Fast charging for 48V lithium / lead-acid batteries
  • IP66 + Touch Screen — Outdoor ready with smart monitoring & parallel support

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Trende Bangladesh is not responsible for any results obtained from using this information.

Description

Must PH11-6KL1-EU-G2 6kW Hybrid Solar Inverter

Managing solar energy becomes easier when your inverter can coordinate solar panels, battery storage and utility electricity instead of treating them as separate power sources. The Must PH11-6KL1-EU-G2 6kW Hybrid Solar Inverter is designed for residential and small commercial solar systems that need intelligent power management, battery backup and flexible on-grid or off-grid operation.

Part of the MUST PH1100 EU-G2 Series, this single-phase hybrid inverter delivers 6000W rated AC output, supports up to 9000W solar PV input, and works with a 48V battery system. With dual MPPT solar tracking, WiFi monitoring, a 4.3-inch touch display and IP66 protection, it provides an integrated solution for modern solar installations in Bangladesh.

Why Dual MPPT Matters for a 9000W Solar Array

The PH11-6KL1-EU-G2 supports up to 9000W maximum DC solar input through two independent MPPT trackers, allowing compatible solar strings to be configured separately.

This is particularly useful when panels are installed on different roof sections or have different orientations. Each tracker can optimize its connected solar string within the supported electrical limits.

For this 6kW model, the maximum PV voltage is 550V DC, solar start-up voltage is 125V, and the full-load DC voltage range is 250–500V. The specified maximum PV input current is 18A + 18A.

The inverter's 9000W PV input capacity does not mean 9000W continuous AC output. Its rated AC power remains 6000W, while solar input can also contribute to battery charging and system energy management under suitable conditions.

More Than Backup: Smart Solar, Grid and Battery Management

Unlike a basic off-grid inverter, the Must PH11-6KL1-EU-G2 is built to manage multiple energy sources. It integrates solar generation, utility power, compatible battery storage and supported generator connections.

Its hybrid functions include self-consumption, backup and time-of-use energy management. Six programmable time periods help users schedule battery charging and discharging according to operating requirements.

For suitable grid-connected installations, the inverter supports AC coupling, allowing an existing compatible solar system to be incorporated into a hybrid energy-storage setup.

Grid connection, export functions and operating modes must be configured according to local utility requirements and the installed system design.

48V Battery Support with 135A Charge and Discharge Capacity

The PH11-6KL1-EU-G2 operates with a nominal 48V battery system, supporting a specified battery voltage range of 40–64V.

It is compatible with supported lead-acid and lithium battery systems, including appropriate LiFePO4 configurations. Its battery charge and discharge current is rated up to 135A, with maximum charging/discharging power of 6000W.

Battery management communication allows supported lithium battery systems to coordinate charging according to compatible BMS settings.

The actual backup duration depends on the installed battery capacity, discharge limits, operating conditions and connected electrical load. Battery selection should be based on the requirements of the complete solar system rather than inverter wattage alone.

Easy Monitoring with a 4.3-Inch Touch Screen and WiFi

The inverter includes a 4.3-inch color touch display for viewing system information and adjusting supported operating settings.

Built-in WiFi monitoring helps users keep track of solar generation, battery status and system operation through compatible monitoring facilities. USB communication is also available, while Ethernet support is listed as optional.

The PH1100 EU-G2 Series supports parallel expansion of up to nine compatible units for suitably engineered on-grid and off-grid installations. This allows future system planning without assuming that every installation will require the maximum number of units.

IP66 Construction for Demanding Installation Environments

With an IP66-rated enclosure, the Must PH11-6KL1-EU-G2 provides strong dust and water-ingress protection for appropriately selected indoor or outdoor installation locations.

The inverter measures 360 × 500 × 238 mm and weighs approximately 22 kg. Its wall-mounted construction, fan cooling and protective functions are designed for professional solar energy systems.

Built-in protection includes anti-islanding, output overcurrent and overvoltage protection, PV input polarity protection, ground-fault sensing and leakage-current monitoring.

Even with IP66 protection, installers must follow manufacturer clearance, ventilation, mounting and electrical safety requirements.

Who Should Choose This MUST 6kW Hybrid Inverter?

The PH11-6KL1-EU-G2 is particularly relevant for homeowners planning a rooftop solar and battery system, offices needing managed backup power, and small businesses seeking to use more of their generated solar electricity.

It can also suit installations where future battery expansion, remote monitoring, time-of-use scheduling or compatible generator integration is important.

Before choosing this model, confirm the expected peak load, solar array voltage/current, battery compatibility and grid-connection arrangements. A qualified solar installer should verify the system's overall design.

Must PH11-6KL1-EU-G2 Hybrid Solar Inverter Price in Bangladesh

The Must PH11-6KL1-EU-G2 6kW Hybrid Solar Inverter price in Bangladesh has not yet been published on Trende Bangladesh, where the product is currently listed as Upcoming.

For customers planning a 6kW residential or small commercial hybrid solar system, the PH11-6KL1-EU-G2 combines 9000W solar input capacity, dual MPPT tracking, a 48V battery system, 135A battery charging/discharging capability and intelligent energy monitoring.

Contact Trende Bangladesh to confirm product availability, updated pricing, applicable warranty and installation requirements before placing an order.
