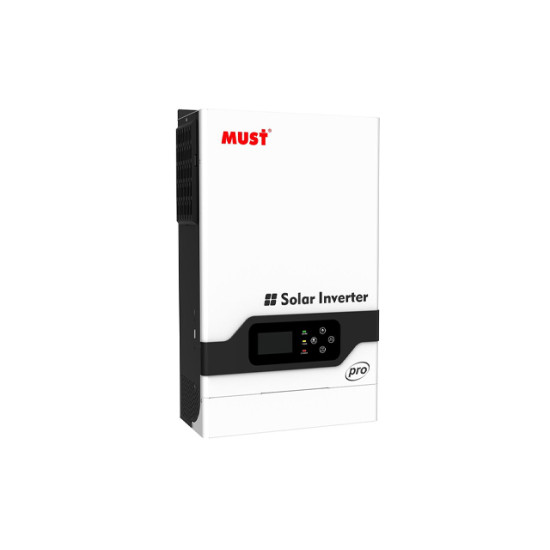

Must PV18-6248 PRO Hybrid Solar Inverter

Must PV18-6248 PRO Hybrid Solar Inverter
Upcoming
Share:
Must PV18-6248 PRO Hybrid Solar Inverter
  • Product id:  507
  • Brand: MUST
  • Model: PV18-6248 PRO
  • Dimensions: 31.80cm x 45.40cm x 12.20cm
  • SKU: MSTPV6248
WhatsApp Inquiry

Upcoming

Key Features

  • 6200W Pure Sine Wave — Clean power with 12400W peak for heavy loads
  • 120A MPPT Solar Charger — Supports high-voltage PV arrays (up to 500V VOC)
  • 48V Battery Compatible — AGM, GEL, Lead-Acid & LiFePO4 with CAN BMS support
  • Smart Dual Output + WiFi — Priority load control, UPS mode & remote monitoring

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Trende Bangladesh is not responsible for any results obtained from using this information.

Description

Must PV18-6248 PRO 6200W 48V Hybrid Solar Inverter

For a solar backup system that needs more capacity than a typical 3KW or 4KW inverter, the Must PV18-6248 PRO 6200W Hybrid Solar Inverter offers a powerful 48V solution for residential and small commercial applications. It combines pure sine wave power conversion, an integrated MPPT solar charger and intelligent load management within a high-frequency off-grid inverter design.

Belonging to the MUST PV1800 PRO Series, the PV18-6248 PRO delivers 6200VA/6200W rated output, supports up to 6200W solar PV array capacity and works with compatible 48V batteries. Its dual AC outputs, battery-optional operation and monitoring functions make it suitable for users planning a more flexible solar and battery backup system.

Why 6200W Rated Power and 5500W Battery Output Matter

The Must PV18-6248 PRO provides 6200W rated output with pure sine wave technology, making it suitable for properly sized lighting, fans, televisions, computers, networking equipment and other compatible household or commercial appliances.

However, the manufacturer's specifications distinguish between rated output and pure battery operation. The inverter supports 5500W output in battery-only mode, with 11000W short-duration surge capacity.

This distinction is important when planning backup loads. A connected system that requires more than the supported battery-only output may not operate as expected during a power interruption.

The inverter also provides 230V AC output regulation within ±5% in battery mode, with peak conversion efficiency in the 90–93% range.

Solar Input Capacity and the Built-in MPPT Controller

The PV18-6248 PRO includes an integrated MPPT solar charge controller supporting up to 6200W of compatible solar PV array capacity.

For this model, the manufacturer's listed maximum PV open-circuit voltage is 450V DC, with an MPPT operating range of 60–360V DC and maximum PV input current of 28A.

The inverter provides up to 100A solar charging current, together with 100A maximum AC charging current. Its maximum combined charging current is also limited to 100A.

These specifications help installers design a compatible solar array while ensuring the connected battery system can safely handle charging requirements.

The 6200W solar array rating and the inverter's 6200W AC rating are separate specifications. Solar generation depends on available sunlight, panel arrangement and overall system conditions.

48V Battery Storage for Higher-Power Backup Systems

Unlike lower-voltage solar inverters, the Must PV18-6248 PRO uses a nominal 48V DC battery system.

It supports suitable lead-acid battery configurations, including AGM and GEL, alongside compatible lithium batteries such as supported LiFePO4 systems.

CAN communication enables integration with compatible lithium battery management systems, while adjustable charging parameters help match the inverter to the selected battery arrangement.

A properly designed 48V battery bank is essential for reliable operation. Battery discharge capacity, BMS limits, wiring, fuses and protection devices must be suitable for the inverter's power requirements.

Actual backup runtime depends on usable battery capacity, connected electrical load and operating efficiency.

Keep Essential Equipment Running with Dual AC Outputs

One of the practical advantages of this MUST 6.2KW solar inverter is its dual AC output configuration.

The main and secondary outputs allow supported load-priority settings, making it possible to manage important electrical equipment separately from less critical appliances.

For example, essential lighting, communication devices and selected office equipment can be planned as priority loads, while secondary appliances are managed according to available solar or battery power.

The inverter also supports operation without a battery when suitable solar input and system conditions are available. However, a compatible battery remains necessary for stored backup energy when solar or utility power is insufficient.

Monitoring, Protection and Installation Considerations

The PV18-6248 PRO provides smart LCD-based settings for monitoring operating status and configuring charging parameters.

RS485, WiFi and CAN communication capabilities support compatible monitoring and battery management arrangements. The availability of WiFi accessories should be confirmed with the supplied package.

Its protection features include overload, short-circuit and deep-discharge safeguards, alongside cold-start capability.

Automatic transfer time is specified at 10ms in UPS/VDE4105 mode and 20ms in APL mode. This is not equivalent to zero-transfer-time online UPS operation.

The inverter is intended for properly configured off-grid solar and backup systems and should not be assumed to support exporting solar electricity into the utility grid.

For buyers who need a smaller 24V setup, the Must PV18-4024 PRO 4000W Solar Inverter is another model worth comparing. Battery voltage, power capacity and connected load requirements should guide the final choice.

Must PV18-6248 PRO Solar Inverter Price in Bangladesh

The Must PV18-6248 PRO 6200W Hybrid Solar Inverter price in Bangladesh has not yet been published at Trende Bangladesh, where the product is currently listed as Upcoming.

With its 48V battery architecture, 6200W rated power, integrated MPPT charging, pure sine wave output and smart dual-load management, this inverter is a practical option for buyers planning a high-capacity residential or small business solar backup installation.

Trende Bangladesh currently lists the product with 1 Year Official Warranty. Contact Trende Bangladesh to confirm stock availability, updated pricing, model revision and compatible battery or solar panel requirements before purchasing.
