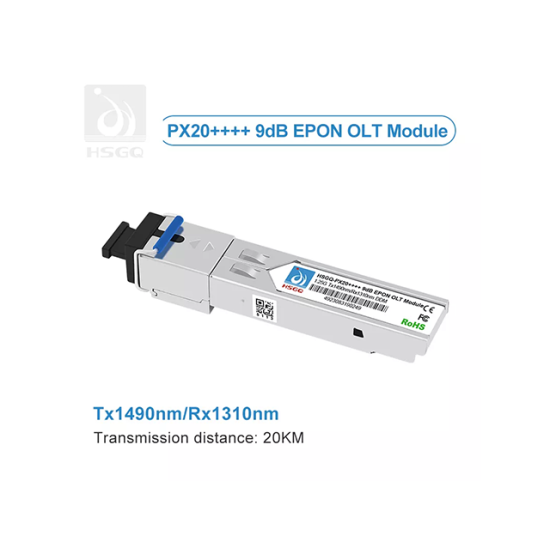

PX20++++ 9dB EPON Module

PX20++++ 9dB EPON Module
-17 %
Share:
PX20++++ 9dB EPON Module
  • Price:  2,500৳
  • Regular Price:  3,000৳
  • Product id:  484
  • Brand: HSGQ
  • Model: PX20++++ 9dB EPON Module
Based on 0 reviews. - Write a review
Payment Option
WhatsApp Inquiry
Add to Cart
Buy Now
Add to Wish List Add to Compare

Key Features

  • High Power Class (PX20++++) — Available in 9dB TX power options
  • 20km Transmission — Supports high split ratios (1:64 ~ 1:128)
  • SC/UPC + DDM — Standard connector with real-time diagnostic monitoring
  • Wide Compatibility — Works with most EPON OLT platforms
View more info

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Trende Bangladesh is not responsible for any results obtained from using this information.

Specification
General Information
Device Type EPON OLT SFP Transceiver (High Power Class)
Form Factor SFP
Type EPON OLT PX20+++ / PX20++++ (High Power)
Hardware
Optical Wavelength Tx: 1490 nm / Rx: 1310 nm
Transmission Distance Up to 20 km
TX Power +5 ~ +10 dBm (Selectable / Model dependent: 9dB class)
Optical Interface
Connector Type SC/UPC
Optical Specifications
Data Rate 1.25 Gbps Symmetric (EPON)
Fiber Type Single Mode Fiber (SMF)
Compatibility & Certifications
Compatible Devices Most EPON OLT platforms (Phyhome, Huawei, ZTE, Fiberhome, Solitine, HSGQ, etc.)
Physical & Environmental
Dimensions 60 × 13.4 × 8.5 mm (Standard SFP)
Weight ≈ 25 g
Environmental Specifications
Operating Temperature 0°C ~ 70°C
Software
Operating Mode Single Fiber (Bi-Directional)
Packaging & Accessories
Package Contents 1 × PX20++++ EPON OLT SFP Module, 1 × Dust Cap, User Guide
Warranty & Support
Warranty 1 Year Official Warranty
Description

PX20++++ EPON OLT SFP Module (9dB High Power)

The PX20++++ EPON OLT SFP Module is a high-power Class +++ / ++++ optical transceiver designed for EPON OLT equipment. With selectable high TX power options (9dB), it supports longer transmission distances and higher split ratios, making it ideal for large-scale FTTH deployments and dense user networks.

High-Power Performance

Available in multiple power classes (9dB), this module delivers strong downstream optical power and excellent receiver sensitivity (-32 to -35 dBm), enabling reliable service up to 20km with high split ratios.

Reliable EPON Transmission

Supports 1.25 Gbps symmetric EPON standard with SC/UPC connector and full DDM (Digital Diagnostic Monitoring) for real-time optical parameter monitoring.

Wide Compatibility

Hot-pluggable SFP form factor compatible with most major EPON OLT brands. Perfect for ISPs requiring high-power PON modules for large coverage and high ONU density.

The PX20++++ EPON OLT SFP Module is a robust and flexible high-power solution for modern EPON fiber access networks.
