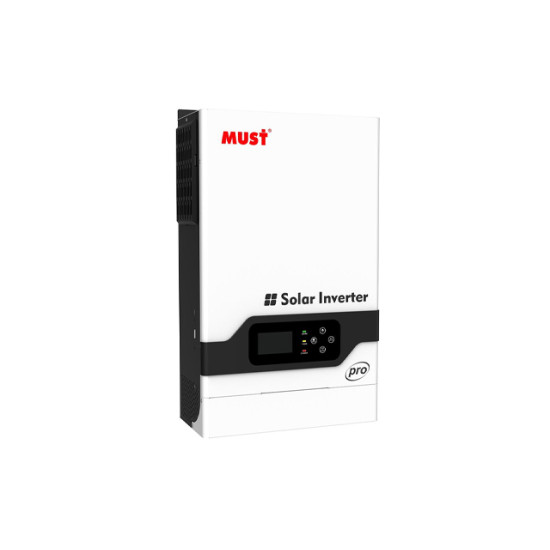

Must PV18-2012 PRO Hybrid Solar Inverter

Must PV18-2012 PRO Hybrid Solar Inverter
Upcoming
Share:
Must PV18-2012 PRO Hybrid Solar Inverter
  • Product id:  509
  • Brand: MUST
  • Model: PV18-2012 PRO
  • Dimensions: 31.80cm x 37.00cm x 12.10cm
  • SKU: MSTPV2012
WhatsApp Inquiry

Upcoming

Key Features

  • 2000W Pure Sine Wave — Clean power with 3200W peak for sensitive appliances
  • 80A MPPT Solar Charger — Supports up to 2000W PV array (30–320V range)
  • 12V Battery Compatible — AGM, GEL, Lead-Acid & LiFePO4 with CAN BMS support
  • Smart Dual Output + WiFi — Priority load control, UPS mode & remote monitoring

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Trende Bangladesh is not responsible for any results obtained from using this information.

Description

Must PV18-2012 PRO 2000W 12V Hybrid Solar Inverter

Building a compact solar backup system doesn't always require a large 24V or 48V setup. For buyers who prefer a 12V battery arrangement, the Must PV18-2012 PRO 2000W Hybrid Solar Inverter offers an integrated solution for managing solar energy, utility electricity and battery power.

Part of the MUST PV1800 PRO Series, this high-frequency solar inverter combines a 2000VA/2000W pure sine wave inverter, built-in 80A MPPT solar charger and battery charging functions in one compact design. With 3200W surge capacity, dual AC outputs and intelligent operating features, it is designed for appropriately sized residential and small commercial solar backup applications.

12V Battery System with Integrated 80A MPPT Charging

The Must PV18-2012 PRO operates with a nominal 12V DC battery system, making it suitable for compatible 12V solar energy storage configurations.

Its built-in MPPT solar charge controller supports up to 80A solar charging current, helping manage energy collected from connected solar panels. The PV18-2012 PRO supports a maximum 2000W PV array rating, a maximum 400V DC solar open-circuit voltage and a 30–320V DC MPPT voltage range according to the listed model specifications.

These voltage limits must be considered when selecting solar panels and arranging the PV strings. The maximum solar panel capacity should not be confused with the inverter's rated AC output, which remains 2000W.

The integrated charging design removes the need for a separate MPPT charge controller in properly configured installations.

What Can Its 2000W Pure Sine Wave Output Handle?

The PV18-2012 PRO supplies up to 2000W rated output and offers 3200W short-duration surge capacity.

Pure sine wave output is designed for compatible electrical appliances such as lighting, fans, televisions, computers and networking equipment.

With 230V AC output regulation of ±5% in battery mode and approximately 90–93% peak efficiency, the inverter is built to support stable power conversion under suitable operating conditions.

Actual appliance compatibility depends on total running wattage, starting current and other connected loads. The 3200W surge rating is not a continuous operating capacity.

Two AC Outputs for Better Backup Priorities

One of the useful features of the Must PV18-2012 PRO is its dual AC output arrangement.

Instead of treating all connected appliances as equally important, supported settings allow main and secondary load channels to be managed according to available power and battery conditions.

For example, an installer may configure essential equipment such as lighting, a Wi-Fi router or communication devices on a priority circuit while managing less important loads separately.

The inverter also offers battery-optional operation under suitable solar input conditions. However, operating without a battery does not provide stored backup energy during insufficient sunlight or an unavailable utility supply.

Battery Compatibility, Monitoring and Protection

The Must PV18-2012 PRO supports compatible AGM, GEL, lead-acid and lithium battery configurations, including supported LiFePO4 battery systems.

Lithium battery communication through compatible CAN or RS485 interfaces can help coordinate charging with supported battery management systems. The inverter also includes a smart display and communication functions for monitoring operating status.

WiFi monitoring may be available through a compatible monitoring module or configuration; buyers should confirm the supplied connectivity accessories before purchase.

Built-in safeguards include overload, short-circuit and deep-discharge protection, along with automatic restart and cold-start capabilities.

These features make the PV18-2012 PRO useful for buyers seeking a compact 12V solar inverter with configurable charging and load management.

Is the PV18-2012 PRO Right for Your Solar Setup?

This MUST 2KW solar inverter is suitable for properly designed residential backup installations, small offices, shops and other locations where essential electrical equipment needs dependable power support.

It is particularly relevant when a 12V battery system is preferred, but the battery must still be capable of supplying the high DC current required at heavier loads.

For example, a 2000W AC load can require substantially more than 150A from a 12V battery system after conversion losses. Battery BMS limits, cable sizing, fuses and connectors therefore need careful consideration.

This model is classified by the manufacturer within its off-grid solar inverter range. It should not be assumed to support utility-grid export simply because it can work with solar and utility power.

A qualified installer should verify solar PV voltage, battery specifications, protection devices and total appliance demand before installation.

Must PV18-2012 PRO Solar Inverter Price in Bangladesh

The Must PV18-2012 PRO 2000W Hybrid Solar Inverter price in Bangladesh has not yet been announced on Trende Bangladesh. The product is currently listed as Upcoming.

For buyers comparing 2KW solar inverters, this model offers a practical combination of pure sine wave output, 12V battery compatibility, 80A MPPT solar charging, smart dual-output load control and modern battery communication features.

Contact Trende Bangladesh to confirm the latest price, stock availability, 1 Year Official Warranty and compatible battery requirements before placing an order.
