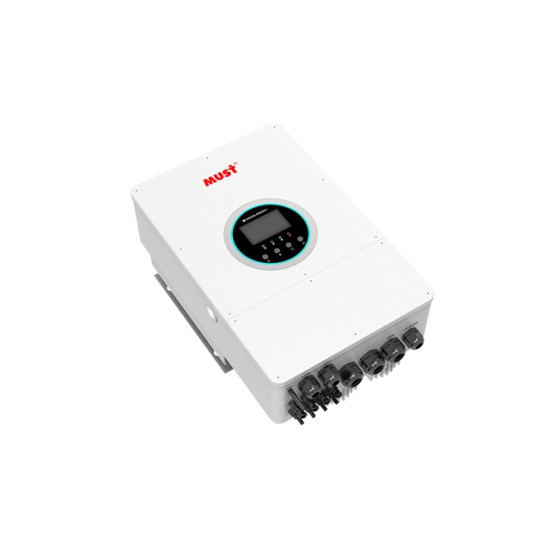

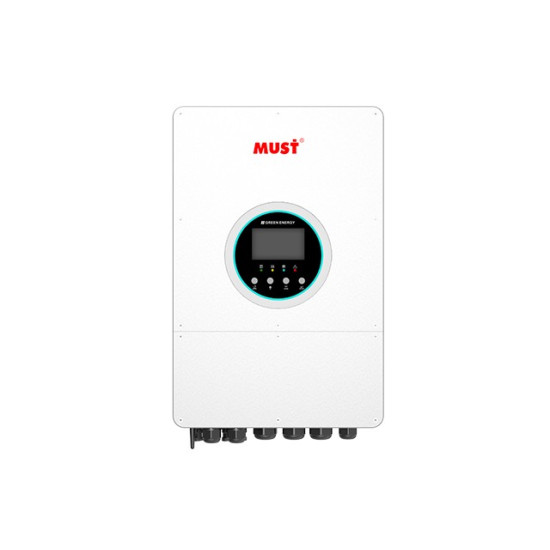

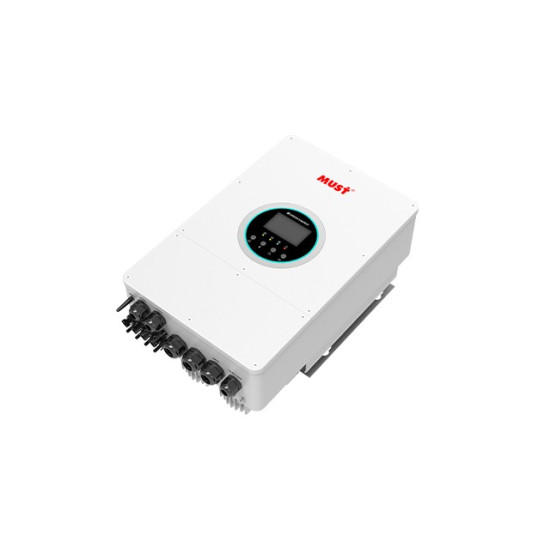

MUST PH91-12KL1-EU-HM 12kW Hybrid Solar Inverter
Choosing a hybrid inverter for a high-capacity solar installation involves more than matching its rated power to the connected electrical load. Solar panel configuration, battery discharge capability, grid connection and system expansion all influence long-term performance. The MUST PH91-12KL1-EU-HM 12kW Hybrid Solar Inverter is designed for residential and light commercial energy systems requiring substantial solar generation and battery storage.
As the 12kW model in MUST's PH9100 EU-HM Series, this single-phase inverter provides 12,000W rated AC output, dual MPPT solar tracking, 48V battery compatibility and up to 230A charging/discharging current. Its IP66 enclosure and integrated monitoring functions make it suitable for professionally designed hybrid solar applications.
12kW Output for Higher Electrical Load Requirements
The PH91-12KL1-EU-HM delivers 12,000W / 12,000VA rated single-phase AC output at 230V.
This capacity makes it relevant for larger residential solar systems, offices and commercial installations with appropriately calculated electrical loads.
Its rated AC output current is 52.2A, with support for 50Hz and 60Hz grid frequencies within the manufacturer's specified operating range.
Actual system capacity depends on connected loads, battery performance, solar generation and installation configuration. High-starting-current equipment must be evaluated separately to ensure compatibility.
Dual MPPT Solar Input with Up to 24kW PV Power
The 12kW model supports a maximum PV input power of 24,000W and a manufacturer-specified maximum PV access capacity of 26,000W.
These are separate specifications and should not be confused with the inverter's 12kW rated AC output.
Its dual MPPT solar controller features two independent tracking channels with a 2+2 PV string configuration and maximum operating PV current of 36A + 36A.
The PV input operates within a 125–500V DC range, with a 125V start-up voltage, 370V rated PV voltage and 500V maximum open-circuit voltage.
With MPPT efficiency above 99%, the system is designed to optimize solar energy harvesting from compatible PV arrays.
Installers must calculate solar string voltage, open-circuit voltage at low temperature, current and cable requirements before installation.
48V Battery Storage with 230A Charge and Discharge Support
Battery compatibility is a critical consideration for a 12kW hybrid solar system.
The MUST PH91-12KL1-EU-HM operates with 48V nominal lead-acid or compatible lithium battery systems, supporting a battery voltage range of 40–60V.
It provides up to 12,000W battery charging/discharging power and a maximum charging/discharging current of 230A.
Supported lithium batteries can communicate through compatible BMS interfaces, while the inverter also provides adaptive battery charging functions.
Because a 12kW system can require substantial DC current, battery discharge ratings, BMS limits, cable sizing and protective equipment must be selected carefully.
Backup duration depends on usable battery capacity and actual connected load rather than the inverter's maximum output rating alone.
Solar Management, Protection and System Monitoring
The inverter features a 4.3-inch touchscreen and LED indicators for monitoring operating conditions and accessing supported settings.

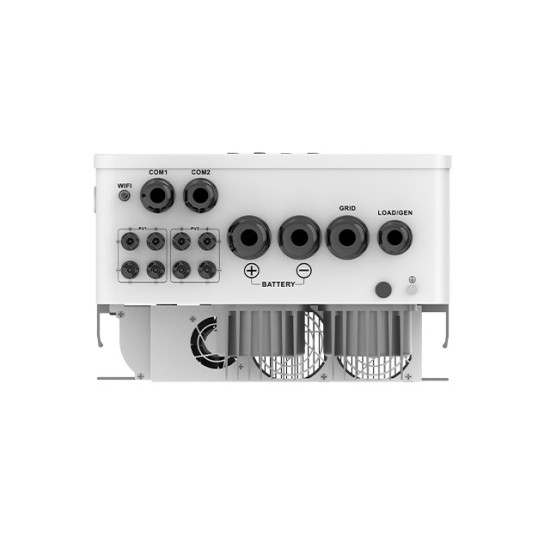

Communication options include WiFi, RS485, CAN and Bluetooth, enabling compatible local or remote monitoring and battery integration.
The PH9100 EU-HM Series also supports CT-based export control and compatible off-grid parallel operation for appropriately engineered systems.
Built-in protection functions include DC reverse polarity protection, AC overcurrent, AC overvoltage, short-circuit protection, grid monitoring and overtemperature protection.
Type II surge protection is specified for both DC and AC sides.
The inverter achieves up to 97.5% maximum conversion efficiency and 96.5% European efficiency, helping improve energy conversion performance within its rated operating conditions.
Installation Considerations for a 12kW Hybrid System
The PH91-12KL1-EU-HM uses a wall-mounted enclosure measuring 378 × 606 × 238mm.
Its IP66 protection rating provides resistance to dust ingress and powerful water jets under the relevant test conditions, while fan cooling supports operation in demanding environments.
The specified operating temperature range is -25°C to +60°C, with output derating above 45°C.
Professional installation should include suitable circuit protection, grounding, battery isolation, PV string protection and compliance with local electrical requirements.
For projects requiring less rated AC output, compare the MUST PH91-10KL1EU-HM 10kW Hybrid Solar Inverter at Trende Bangladesh.
The appropriate model should be selected according to actual electrical loads, solar input capacity and battery-system requirements.
MUST PH91-12KL1-EU-HM 12kW Hybrid Solar Inverter Price in Bangladesh
The MUST PH91-12KL1-EU-HM 12kW Hybrid Solar Inverter is listed at Trende Bangladesh. Contact the Trende team to confirm the latest price in Bangladesh, product availability and applicable local warranty.
With its 12kW single-phase output, dual MPPT design, 24kW maximum PV input, 48V battery support and 230A charging/discharging current, this model provides a flexible foundation for professionally designed higher-capacity hybrid solar energy systems.
Choose the MUST PH91-12KL1-EU-HM for residential or commercial solar projects that require substantial PV integration, compatible energy storage and advanced inverter monitoring.
