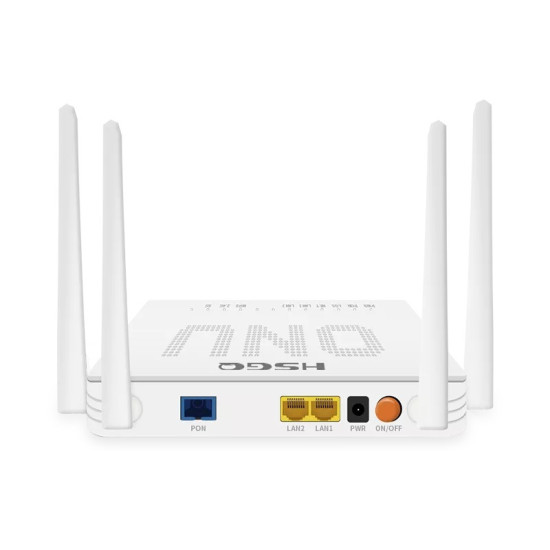

HSGQ X200DW 1200M WiFi XPON ONU – A Practical Middle Ground for Fiber Broadband

Not every fiber internet setup needs four LAN ports, a telephone interface or the latest Wi-Fi 6 hardware. For many homes and small workspaces, two Gigabit Ethernet ports and dependable dual-band Wi-Fi can be a more practical combination.

The HSGQ X200DW 1200M WiFi XPON ONU brings those essentials together with a GPON/EPON adaptive optical interface. It works as a fiber broadband gateway with built-in AC1200 Wi-Fi 5 and two Gigabit LAN connections, making it suitable for compatible FTTH installations without requiring a separate wireless router for basic everyday networking.

A Home Setup with Two Wired Connections

Consider a small household where one desktop computer and a smart TV need Ethernet connections, while phones and laptops use Wi-Fi. With the X200DW, both fixed devices can connect through its two 10/100/1000Mbps RJ45 ports, leaving the built-in wireless network available for mobile devices.

Each Gigabit port supports a maximum 1000Mbps Ethernet link rate. This does not mean two devices will automatically receive 1000Mbps internet simultaneously; their actual throughput depends on the broadband package and shared network capacity.

This two-port arrangement is particularly useful when a single-port ONU feels too limited, but a four-port gateway would provide more connections than you need.

Choosing Between 2.4GHz and 5GHz

The HSGQ X200DW dual-band ONU router supports 802.11a/b/g/n/ac wireless standards, combining 2.4GHz and 5GHz Wi-Fi in an AC1200-class system.

The 2.4GHz band can be helpful for supported devices farther from the gateway, while 5GHz offers higher potential wireless throughput at suitable distances. The manufacturer lists two-stream wireless operation with up to 866Mbps PHY rate on 5GHz.

Instead of forcing every device onto one network, the X200DW supports multiple SSIDs, automatic channel selection, hidden SSIDs and WPA/WPA2 wireless security.

The 1200M designation refers to the device's theoretical combined Wi-Fi class, not a guaranteed 1200Mbps broadband connection. Actual wireless speeds vary with interference, walls, client devices and router placement.

Fiber Compatibility Comes Before Speed

The wireless features are useful, but the first consideration when choosing any XPON ONU should be compatibility with the ISP's fiber infrastructure.

The X200DW supports adaptive GPON and EPON operation, using a single optical interface designed for compatible OLT networks. Its GPON optical rates reach up to 2.5Gbps downstream and 1.25Gbps upstream, while EPON operates at 1.25Gbps in both directions.

HSGQ specifies an optical transmission reach of up to 20km under suitable network conditions. The optical connector is available in SC/UPC and SC/APC configurations, so buyers should check the exact supplied variant before installation.

Your ISP may also need to register the ONU using its authentication information. Dual-mode XPON support does not automatically guarantee that the device will work with every provider.

Network Controls for Everyday Use and ISP Deployment

Beyond internet connectivity, the HSGQ X200DW XPON ONU includes functions such as PPPoE, DHCP, NAT, IPTV, VLAN configuration, QoS and bandwidth control.

The manufacturer also lists ACL packet filtering, port binding, dynamic bandwidth allocation, remote software upgrades and TR-069 management for compatible operator systems. Web, Telnet, OMCI and OAM management options assist with configuration and maintenance.

The unit operates using a 12V/1.5A DC power supply, with manufacturer-specified power consumption below 9W. Its dimensions are approximately 162 × 112 × 30mm, making it suitable for an indoor desktop or network shelf.

For a complete wired installation, Trende also offers Networking Cables, Network Switches and Networking Accessories. You can compare other optical terminals in the ONU Collection.

HSGQ X200DW Price in Bangladesh

The HSGQ X200DW 1200M WiFi XPON ONU price in Bangladesh is ৳3,500 at Trende, reduced from the regular listed price of ৳4,000.

For anyone comparing WiFi ONU price in Bangladesh, the X200DW offers a balanced combination of two Gigabit LAN ports, dual-band AC1200 Wi-Fi and GPON/EPON compatibility without the extra hardware of larger multi-service ONU models.

Order the HSGQ X200DW 1200M WiFi XPON ONU from Trende Bangladesh and confirm stock, connector type and ISP compatibility before purchasing.
