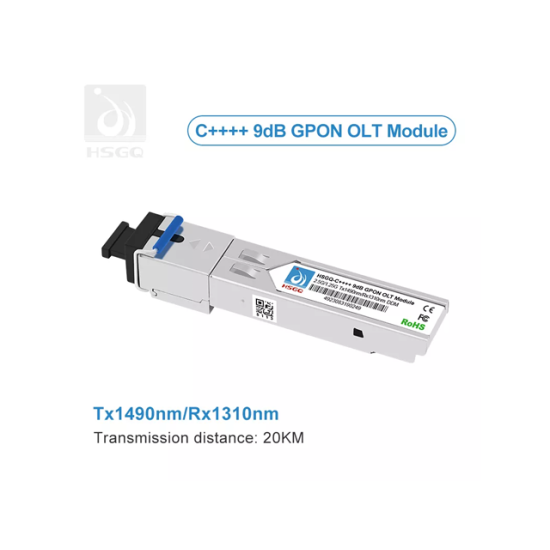

C++++ 9dB GPON Module

C++++ 9dB GPON Module
-8 %
Share:
C++++ 9dB GPON Module
  • Price:  2,200৳
  • Regular Price:  2,400৳
  • Product id:  485
  • Brand: HSGQ
  • Model: C++++ 9dB GPON Module
Based on 0 reviews. - Write a review
Payment Option
WhatsApp Inquiry
Add to Cart
Buy Now
Add to Wish List Add to Compare

Key Features

  • High Power Class C++++ — Available in 9dB TX power options
  • 20km Transmission — Supports high split ratio up to 1:128
  • SC/UPC + DDM — Standard connector with real-time diagnostic monitoring
  • Wide Compatibility — Works with most GPON OLT platforms
View more info

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Trende Bangladesh is not responsible for any results obtained from using this information.

Specification
General Information
Device Type GPON OLT SFP Transceiver (High Power Class C+++)
Form Factor SFP
Type GPON OLT Class C+++ (High Power)
Hardware
Optical Wavelength Tx: 1490 nm / Rx: 1310 nm
Transmission Distance Up to 20 km
TX Power +5 ~ +10 dBm (Selectable: 9dB class)
Wireless Specifications
Data Rate 2.488 Gbps Downstream / 1.244 Gbps Upstream
Design & Build
Weight ≈ 25 g
Optical Interface
Connector Type SC/UPC
Optical Specifications
Fiber Type Single Mode Fiber (SMF)
Compatibility & Certifications
Compatible Devices Most GPON OLT platforms (Huawei, ZTE, Fiberhome, Phyhome, Solitine, HSGQ, etc.)
Physical & Environmental
Dimensions 60 × 13.4 × 8.5 mm (Standard SFP)
Environmental Specifications
Operating Temperature 0°C ~ 70°C
Software
Operating Mode Single Fiber (Bi-Directional)
Packaging & Accessories
Package Contents 1 × C+++ GPON OLT SFP Module, 1 × Dust Cap, User Guide
Warranty & Support
Warranty 1 Year Official Warranty
Description

C++++ 9dB GPON OLT SFP Module (20km)

The C++++ High Power GPON OLT SFP Module is designed for large-scale GPON deployments requiring longer distance and higher split ratios. With selectable TX power options 9dB), it delivers strong optical performance up to 20km, making it ideal for dense FTTH networks and high ONU density applications.

High-Power Class C++++ Performance

Available in multiple power classes (5/7/8/9/10 dB), this module provides enhanced downstream optical power and excellent receiver sensitivity (-32 to -35 dBm), supporting reliable service with 1:128 split ratio.

Reliable GPON Transmission

Supports standard GPON rates of 2.488 Gbps downstream and 1.244 Gbps upstream with SC/UPC connector and full DDM (Digital Diagnostic Monitoring) for real-time optical monitoring.

Wide Compatibility

Hot-pluggable SFP form factor compatible with most major GPON OLT brands. Perfect for ISPs needing high-power PON modules for extended coverage and high user density.

The C+++ 5/7/8/9/10dB GPON OLT SFP Module is a robust and flexible high-power solution for modern GPON fiber access networks.

Questions

Have question about this product? Get specific details about this product from expert.

No questions have been asked about this product.

Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of C++++ 9dB GPON Module in Bangladesh?

The latest price of C++++ 9dB GPON Module in Bangladesh is 2,200৳ . You can buy the C++++ 9dB GPON Module at best price from our website or visit any of our showrooms.
